Rotary Joint

Home - Products

MXPH Rotary Joint (Mono Flow)_Fujian Minxuan Technology Co., Ltd. ,Rotary Joint,Steam Rotary Joint,Water Rotary Joint,Hot Oil Rotary Joint,Coolant Rotary Joint,Air Rotary Joint,Hydraulic Oil Rotary Joint,Other Media Rotary Joint,Flexible Metal Hose,Graphite Accessories,Seal Ring,Metal Gasket,Rubber Band,Stainless metal hose

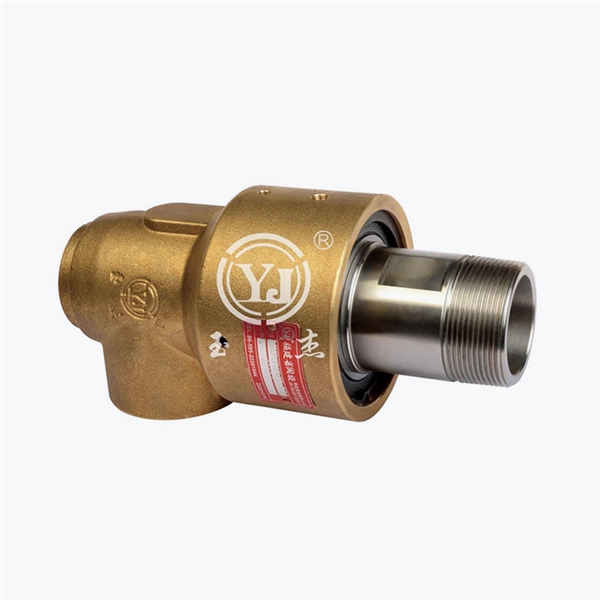

MXPH Rotary Joint (Mono Flow)

Model：MXPH
Outer pipe：Thread connection or flange connection
Feature：Plane sealing design; Standard antimony impregnated graphite or carbon graphite sealing technology; Balance design of metalloid composite or metalloid friction pairs; Single spring design; Self-supporting design; Double bearing spacing support; Copper alloy shell; Mono-flow and dual-flow design; Low torque.

Technical Parameter：

Media	Water、Oil
Max.Temperature	≤120℃（Water）、≤260℃（Oil）
Max.Pressure	≤1.0MPa
Max.Speed	≤1500rpm

Product consultation Back to list

Sales Service Hotline：

0595-8686 1188

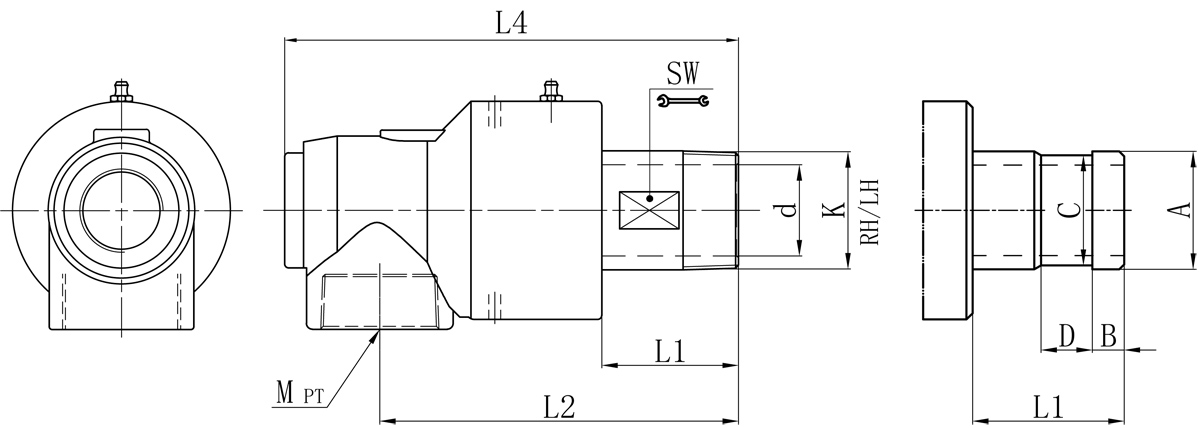

Dimensions

壹定发·(EDF)最新官方网站

Model	K	I	d	L1	L2	L4	SW	Flange outer tube size control table
								A	B	C	D
50A	R2"	Rp2”	46	69	181	220	57	60	16	57	24

We offer customized products if special sizes.
Specifications are subject to change without notice.
